I. What is a Laser Igniter?

A laser igniter is a portable device that uses a focused laser beam to generate heat at the focal point to ignite flammable materials without open flame. Featuring core advantages including non-contact operation, high precision, excellent safety and strong anti-interference performance, it is widely applied in industrial maintenance, fireworks ignition, camping, cooking and many other scenarios.

II. Working Principle of Laser Ignition

A laser igniter adopts a high-power laser diode to emit a focused light beam. At the focal point, the energy density surges sharply, triggering a sequence of rapid material heating, thermal decomposition and ignition. Equipped with an optical focusing lens that concentrates the beam into an extremely tiny spot, it can ignite matches, firecrackers, balloons and other items from a distance of up to 10 meters.

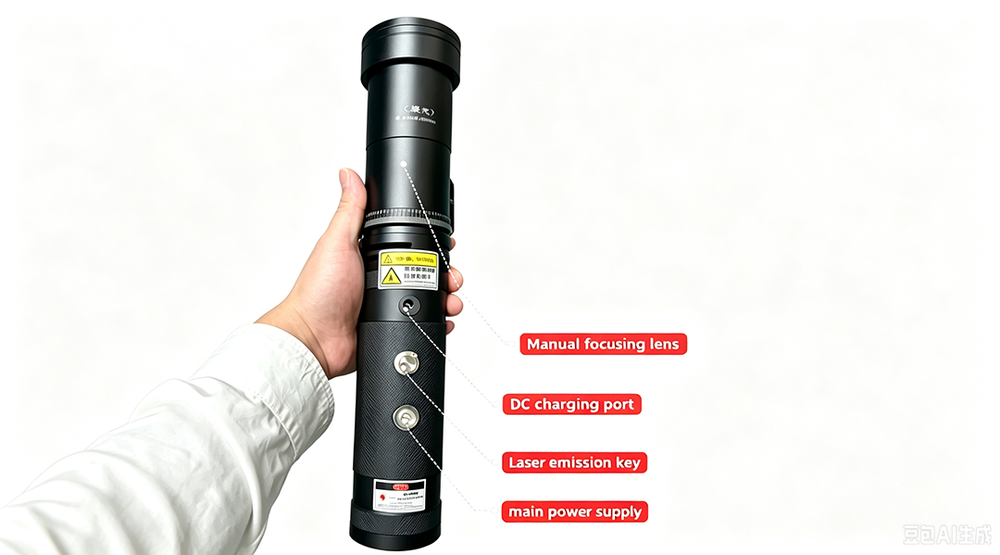

III. Components of a Laser Igniter

A laser igniter consists of four major modules: optical system, circuit control system, protective housing and focusing lens. All modules work in tandem to ensure stable equipment operation. The key core components are specified below:

1.Core Laser Emission Assembly

Centered on a semiconductor laser, this acts as the energy source of the device. It generates a laser beam with fixed wavelength and high energy density, serving as the core provider of ignition energy.

2.Circuit Control Assembly

Composed of a drive circuit board, signal receiver, voltage regulator module and trigger sBlockedword/sentence, it receives external ignition commands to precisely control laser activation, power adjustment and operating duration. It also integrates overvoltage, overcurrent and overheating protection functions to guarantee safe and stable operation.

3.Protective Housing & Auxiliary Components

Built with high-temperature resistant, impact-resistant and corrosion-resistant alloy housing, incorporating internal sealing, heat insulation and shock-absorbing structures together with a heat dissipation module. It can withstand harsh and complex industrial and special working conditions, protecting the precision internal optical and circuit components.

4.Optical Focusing Lens (Normally Detachable)

Available in 20×, 30×, 50× and 70× specifications, operating on a principle similar to digital camera lenses. It focuses the laser beam into a minuscule light spot to enable ignition over longer distances. Higher magnification lenses support longer ignition ranges. For instance, a 50× lens can ignite combustibles such as firecrackers and matches from 12 to 15 meters away.

IV. Applications of Laser Igniters

Laser igniters have an extensive range of applications, including:

Outdoor exploration, laser obstacle clearance, wasp nest removal, snake deterrence, magic performances, fruit picking, campfire ignition, self-defense in remote areas, remote ignition of fireworks and firecrackers, fire drills, deterrence of hazardous animals (stray dogs, cats and birds in orchards), plastic cutting, burning twigs, drilling or welding thin metals, melting thin steel nails, igniting materials (rubber, plastic, wood, paper, synthetic fibers), pest control (eliminating cicadas, insects, flies), instant melting of welding wire, partial rust removal and metal heating, heating small components, cockroach elimination, rodent and wild boar deterrence, eradication of golden apple snail eggs and adult snails, control of giant African snails and barnacles, mineral sintering, high-temperature sintering and heating of small objects.

It works effectively even through glass. Continuous irradiation can produce temperatures up to 1800°C. Numerous other potential practical and recreational applications remain to be explored.

V. Safety Precautions for Using Laser Igniters

• The laser igniter shall only be used for legal and compliant industrial, outdoor and research purposes. Purchasers and users must be adults aged 18 or above with full civil capacity and bear full liability for their actions. Take fire prevention measures after use to avoid re-ignition. Do not use it on highly flammable and explosive materials.
• The manufacturer and seller shall not be liable for any personal injury or property damage caused by improper use (such as directing laser beams into others’ eyes or disrupting public safety).
• The device features a laser emission aperture. Do not stare directly into the aperture. Never aim the laser at any person, animal or reflective surface. Illegal use and pranks are strictly prohibited. Protective goggles are recommended during operation.
• Keep this product out of children’s reach. Minors are forbidden to operate the device.
• If the device fails to power on, suffers reduced laser intensity or charging faults, contact after-sales service for maintenance. Do not disassemble the device on your own.
